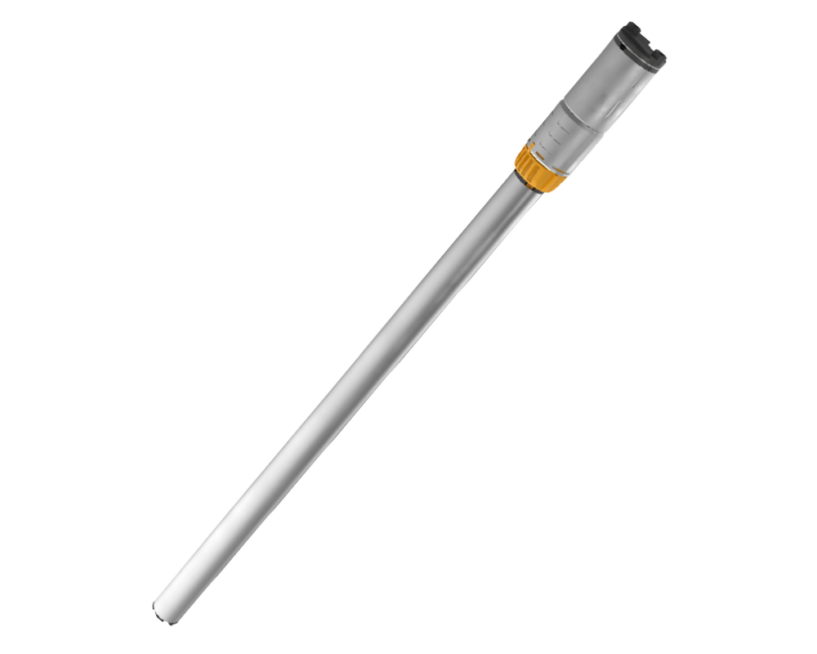

DMDinline SE
The DMDinline SE is a highly efficient single-stage actuator for telescoping functions. It is ready to be installed in thick-end-up and thick-end-down columns. With a new brake technology, it is the door opener for low-power source applications, like USB-PD.
Available from Q2 2025.
- Efficient brushless actuator
- 40 mm diameter
- Optimized for low-power applications
- Parametrizable speed
- BIFMA X5.5 & EN527-1/2
Technical Data
| Input Rating | 28.5V DC, 3.25 A |
| Lifting Capacity | 800 N |
| Speed | Up to 45 mm/s |
| Stroke | 483 mm |
| Installation Length | 620 mm standard length, customizable |
